MVT-1140D: Installation, LED Status Lights, and TroubleshootingUpdated 2 months ago

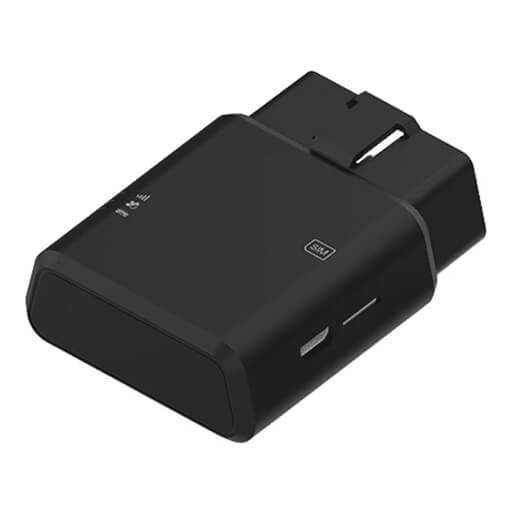

miTrail™ MVT - 1140D Vehicle Tracker - miTrail GPS

Installation

  1. Locate your vehicle's OBDII port. It's usually found on the driver's side under the dashboard.
  2. Park outside with a clear view of the sky. The ignition needs to be on for power and location services.
  3. Activate your device (if not already done). Visit app.mitrail.com and follow the instructions.
  4. Plug the device firmly into the OBD-II port.
  5. Start the ignition and check the lights. All lights should be solid to confirm successful installation.

LED Status Lights

The LED lights can help diagnose your device's status. For accurate readings:

  1. Unplug and then replug the device.
  2. Wait two minutes.
  3. Compare the lights to the information provided by miTrail

Troubleshooting - MVT-1140 Not Reporting

Always unplug and firmly re-secure the device to the OBD-II port, monitor for 2-5 minutes, and note the lights. After 20 minutes If all lights except the diagnostic indicator are solid, you should see your asset updated in the portal within 20 minutes. See below for more details:

  • Network Coverage: The device might be outside coverage. It will report upon returning.
  • Blocked Connection: Check for poor cell service or a blocked device.
  • Power Issues: Turn on the vehicle to provide power.
  • Disconnected Device: Ensure the device is firmly plugged into the OBD-II port.
